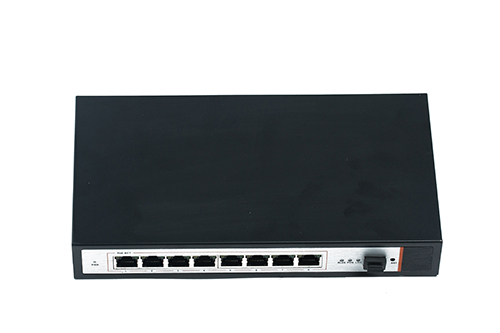

GSDP1504-POE POE – POWER OVER ETHERNET ETHERNET POWER SUPPLY （WITH EPON ONU FUNCTION）

Description

GSDP1504-PoE is a PoE Ethernet power supply with 8 RJ-45 ports (100Mbps). It also contains an EPON ONU. It is specially designed for wireless network and security monitoring system to supply power for WiFi antenna and video camera, etc.

GSDP1504-PoE can provide the users with IP video and data connection. It establishes video and data communications between powered devices and control center. It has 1 EPON uplink light port, 8 copper ports with 10/100Mbps self - adaption. It is based on EPON technology that is mature and stable, cost-effective. Only one optical fiber will be needed for two-way communication with EPON OLT. The maximum transmission distance can be up to 40 km.

GSDP1504-PoE supports data exchange function. Its 8 power supply ports can be connected to switch also for convenient and flexible using.

GSDP1504-PoE supports power-down reporting function and the WEB local management function. 8 power supply ports can automatically detect and identify PDs that accord with IEEE802af/at standards and supply power to them.

GSDP1504-PoE is the desirable, economical power supply device for deploying wireless access points (AP) and IP based network surveillance cameras.

Features

?Comply with IEEE802.3ah and CTC EPON equipment technical standard

?1.25Gbps transmission speed

?Support 8 LLIDs, bidirectional FEC and RS (255, 239) FEC codec

?Support downlink triple disturbances and AES128 decryption

?Support SBA and DBA

?Support Dying-Gasp detecting and reporting

?L2 bidirectional retransmission

?1k MAC address table @ bridge mode, 2k MAC address table @ switch mode

?Support 802.3 & 802.1q's Tag/Untag Ethernet frame, flexible tag processing

?Compatible with CTC2.1 & TR156 standards

?Support energy conservation in line with CTC2.1 standard

?Support QoS & QinQ

?Easy to configure, easy to install

?Up to 100 meters to PDs for data transmission and power supply, easy to install PDs

?Intelligent power supply, low power consumption

?Power circuit protection function

?No fan design, mute and no noise, energy saving and environmental protection

?Support loop detection

?Support power-saving, power cutoff @ port disconnected

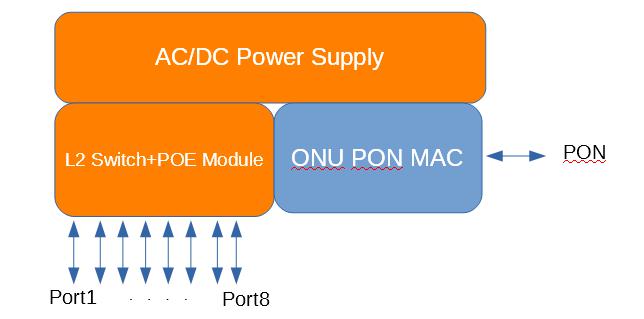

Block Diagram

Specifications

Table 1. Technical Specifications

Item	Unit	Value
Number of power supply ports	Pcs	8
Physical interface	-	RJ-45 (10/100Mbps)
Output voltage	VDC	48 (2.5A)
Max. output power @ one port	W	25
Max. output power @ total ports	W	115
EPON port connector		SC/PC
Transmission speed	Gbps	1.25 (symmetry)
Transmission distance	km	40
Supported protocol	-	IEEE802.3ah，IEEE802.3af，IEEE802.3at，IEEE802.3az
	-	IEEE802.3u, IEEE802.3x
	-	CTC2.1

Table 2. General Specifications

Item	Unit	Value
Power supply voltage	VDC	52 (2.3A)
External AC/DC power adapter	VAC	100 – 240 (1.5A)
Power consumption	W	3
Dimensions (W x H x D)	mm	184 x 27 x 94
Weight	kg	0.4 (PoE only) 0.6 (with external adapter)
Operating temperature	°C	0 - + 40
Storage temperature	°C	- 40 - + 80
Relative humidity	%	5 - 90 (non-condensing)

Ordering information

Product description	Part number
GSDP1504-PoE Ethernet power supply, 8 power ports, with internal ONU, Pin 1 & 2 (+), 3 & 6 (-), Chinese power cord	GSDP1504-PoE-12-2C
GSDP1504-PoE Ethernet power supply, 8 power ports, with internal ONU, Pin 4 & 5 (+), 7 & 8 (-), European power cord	GSDP1504-PoE-45-2E
GSDP1504-PoE Ethernet power supply, 8 power ports, with internal ONU, other optional	GSDP1504-PoE-aa-bb aa ─ Pin definition @ power supply port 12 – Pin 1 & 2 (+), 3 & 6 (-) 45 – Pin 4 & 5 (+), 7 & 8 (-) bb ─ AC power cord 1A – 110VAC, American cord 2C – 220VAC, Chinese cord 2E – 220VAC, European cord
