        Product
        GSDT-FTX-II 1310NM FORWARD TRANSMITTER

        Description

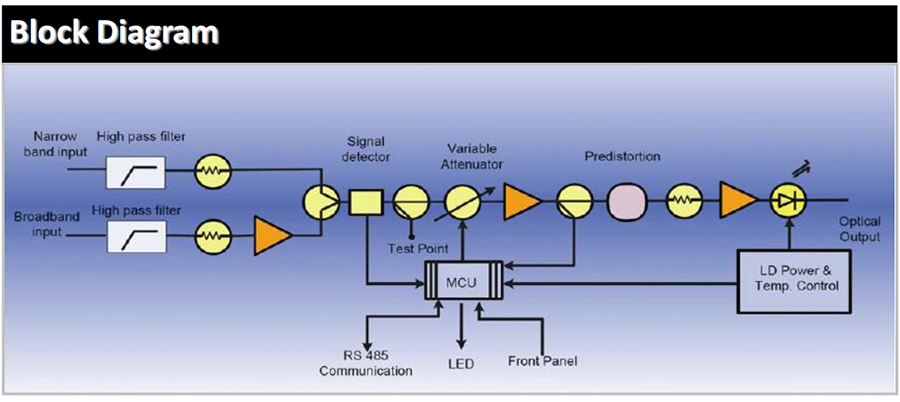

        The GSDT-FTX-II-1310 forward transmitters are part of a new series in the Excelsior optical transmission platform that will mix with other GSDT-FTX series to integrate into the same GSDT-link Chassis. The module contains a high performance, advanced pre-distortion circuitry achieves superior CSO and CTB, and ideal for broadcast and narrowcast applications. It can provide a wide range of optical output power to deliver both analog and digital signals. All configuration parameters of modules can be monitored by LED screens on the front panel of the module, or by the GSDT-EMS equipment management module.

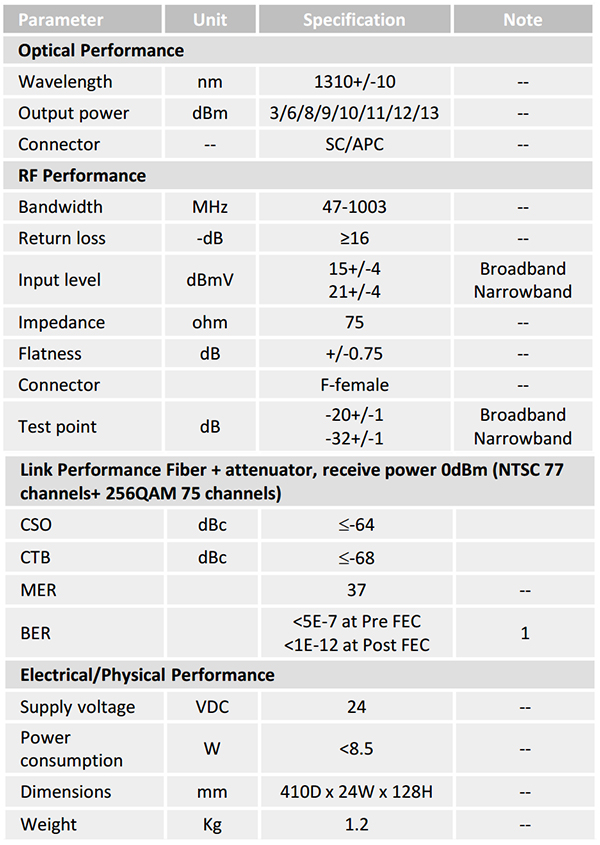

        Specifications


        1: QAM channels start at 561MHz (center frequency) up to 999MHz center frequency


        Features


        ■ High performance 1310nm DFB laser with super pre-distortion circuit

        ■ Wide range of optical output power

        ■ Hot-swap capability

        ■ Front panel LEDs indication

        ■ Automatic/manual gain control (AGC/MGC)

        ■ Broadband and narrowband input

        ■ RF input test point

        ■ Short circuit protection

        ■ Lower power consumption

        ■ MGC scope: ±5dB

        ■ Default OMI setting 3.7%, from -6dB to +4dB control under AGC setting

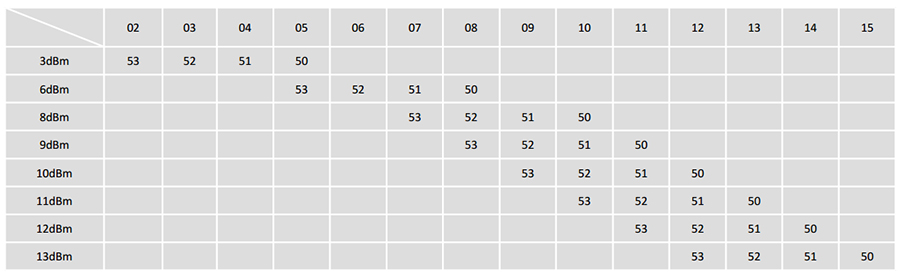

        CNR

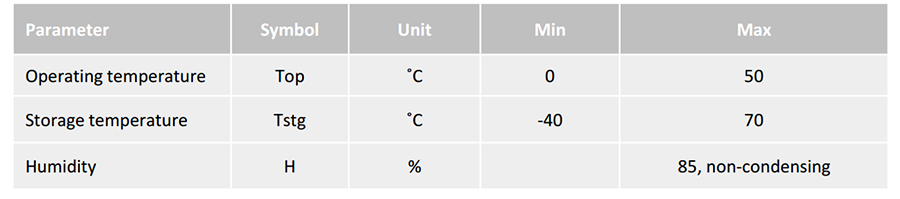

        Absolute Maximum Ratings

        Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.

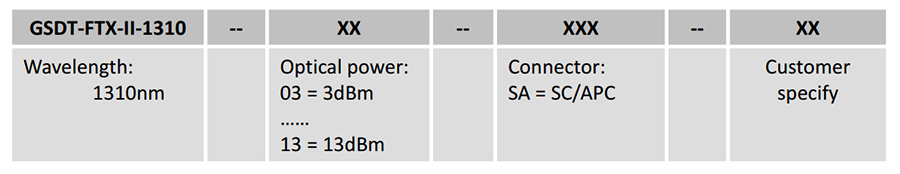

        Ordering Information
